VectorEditGym

Human visual repair instructions, hidden SVG targets, and an auditable specification: repair every visible defect closely enough while preserving the rest of the scene semantically.

Browse 40 tasks See the leaderboard Read the paper View on GitHub

authors

YAYug Aditi Guptayug@thetalab.tech

PHPrannay Hebbar

Shared material and equal contribution by both authors.

leaderboard

A repair can be approximate. Its side effects cannot.

34 model endpoints, one scored outcome per task, no fallback routing. A full pass requires every requested repair within calibrated perceptual tolerance, a valid SVG, and semantic preservation outside the requested fields. Invalid outputs receive zero repair progress; UCR is conditional on valid outputs.

Updated 2026-07-20Evaluator semantic-perceptual-binary-2026-07-21Corpus 2a62410b5de7

Submit your run

top ten / specification gates

full table34 entries

#	Solver	Provider	Full pass	Near	Progress	Clean	Source	Valid UCR	Valid	Target	Truncated	Errors	Cost	Tasks	Date
#1	Claude Sonnet 5	Anthropic	15.0%	2.5%	43.7%	42.5%	42.5%	0.8%	62.5%	0.0%	40.0%	0.0%	$2.032	40	2026-07-20
2	KAT Coder Air V2.5	KwaiPilot	12.5%	0.0%	27.3%	25.0%	25.0%	0.3%	42.5%	0.0%	57.5%	0.0%	$0.128	40	2026-07-20
3	MiniMax M3	MiniMax	10.0%	0.0%	33.0%	25.0%	25.0%	1.0%	45.0%	0.0%	55.0%	0.0%	$0.240	40	2026-07-20
4	HY 3	Tencent	7.5%	2.5%	56.8%	37.5%	37.5%	1.8%	100.0%	0.0%	0.0%	0.0%	$0.092	40	2026-07-20
5	Gemma 4 31B IT	Google	5.0%	5.0%	54.8%	47.5%	47.5%	0.8%	87.5%	2.5%	5.0%	0.0%	$0.084	40	2026-07-20
6	Qwen3.5 397B A17B	Qwen	5.0%	0.0%	39.8%	32.5%	32.5%	1.4%	65.0%	0.0%	32.5%	0.0%	$0.618	40	2026-07-20
7	DeepSeek V4 Pro	DeepSeek	5.0%	2.5%	30.6%	20.0%	20.0%	1.2%	47.5%	0.0%	52.5%	0.0%	$0.508	40	2026-07-20
8	Kimi K2.6	Moonshot AI	5.0%	5.0%	16.0%	15.0%	15.0%	0.3%	25.0%	0.0%	72.5%	2.5%	$1.077	40	2026-07-20
9	Qwen3 Coder	Qwen	2.5%	0.0%	54.7%	45.0%	45.0%	1.4%	100.0%	0.0%	0.0%	0.0%	$0.295	40	2026-07-20
10	Gemini 3.1 Flash Lite	Google	2.5%	0.0%	54.5%	25.0%	25.0%	2.5%	100.0%	0.0%	0.0%	0.0%	$0.269	40	2026-07-20
11	Devstral 2512	Mistral	2.5%	5.0%	46.0%	57.5%	57.5%	0.6%	97.5%	0.0%	0.0%	0.0%	$0.358	40	2026-07-20
12	Inkling	Thinking Machines	2.5%	0.0%	26.6%	27.5%	27.5%	0.8%	45.0%	0.0%	55.0%	0.0%	$0.806	40	2026-07-20
13	GPT-5	OpenAI	2.5%	0.0%	9.1%	7.5%	7.5%	0.3%	15.0%	0.0%	85.0%	0.0%	$1.945	40	2026-07-20
14	Nemotron 3 Ultra	NVIDIA	2.5%	0.0%	4.9%	5.0%	5.0%	0.5%	7.5%	0.0%	92.5%	0.0%	$0.622	40	2026-07-20
15	Claude Haiku 4.5	Anthropic	0.0%	0.0%	54.0%	27.5%	27.5%	2.0%	100.0%	0.0%	0.0%	0.0%	$0.789	40	2026-07-20
16	Seed 2.0 Mini	ByteDance	0.0%	2.5%	51.2%	35.0%	35.0%	2.0%	92.5%	0.0%	2.5%	0.0%	$0.174	40	2026-07-20
17	GPT-OSS 120B	OpenAI	0.0%	5.0%	49.9%	42.5%	42.5%	1.1%	95.0%	0.0%	5.0%	0.0%	$0.057	40	2026-07-20
18	Llama 4 Maverick	Meta	0.0%	0.0%	46.9%	20.0%	20.0%	2.5%	92.5%	0.0%	0.0%	0.0%	$0.143	40	2026-07-20
19	Mistral Small 2603	Mistral	0.0%	0.0%	39.0%	5.0%	5.0%	4.7%	95.0%	0.0%	0.0%	0.0%	$0.119	40	2026-07-20
20	GPT-5.4 Nano	OpenAI	0.0%	0.0%	38.0%	22.5%	22.5%	2.2%	97.5%	0.0%	0.0%	0.0%	$0.177	40	2026-07-20
21	GPT-OSS 20B	OpenAI	0.0%	2.5%	36.5%	27.5%	27.5%	1.6%	72.5%	0.0%	27.5%	0.0%	$0.030	40	2026-07-20
22	Phi-4	Microsoft	0.0%	0.0%	30.7%	12.5%	12.5%	3.8%	92.5%	0.0%	0.0%	0.0%	$0.026	40	2026-07-20
23	Laguna M.1	Poolside	0.0%	2.5%	23.3%	25.0%	22.5%	1.4%	42.5%	0.0%	55.0%	0.0%	$0.101	40	2026-07-20
24	Ling 2.6 Flash	InclusionAI	0.0%	0.0%	19.4%	15.0%	15.0%	4.8%	87.5%	0.0%	5.0%	0.0%	$0.006	40	2026-07-20
25	Granite 4.1 8B	IBM	0.0%	0.0%	18.5%	10.0%	10.0%	14.3%	77.5%	0.0%	2.5%	0.0%	$0.019	40	2026-07-20
26	GLM 4.7	Z.ai	0.0%	0.0%	15.1%	12.5%	12.5%	0.9%	30.0%	0.0%	70.0%	0.0%	$0.549	40	2026-07-20
27	MiMo V2.5 Pro	Xiaomi	0.0%	0.0%	6.4%	5.0%	5.0%	0.8%	10.0%	0.0%	87.5%	0.0%	$0.384	40	2026-07-20
28	Qwen3.6 35B A3B	Qwen	0.0%	0.0%	4.9%	2.5%	2.5%	1.4%	7.5%	0.0%	92.5%	0.0%	$0.236	40	2026-07-20
29	Trinity Large Thinking	Arcee AI	0.0%	0.0%	1.8%	0.0%	0.0%	0.0%	2.5%	0.0%	97.5%	0.0%	$0.176	40	2026-07-20
30	Gemini 3.1 Pro Preview	Google	0.0%	0.0%	0.0%	0.0%	0.0%	n/a	0.0%	0.0%	100.0%	0.0%	$2.494	40	2026-07-20
31	Nemotron 3 Nano	NVIDIA	0.0%	0.0%	0.0%	0.0%	0.0%	n/a	0.0%	0.0%	80.0%	0.0%	$0.051	40	2026-07-20
32	OLMo 3 32B Think	AI2	0.0%	0.0%	0.0%	0.0%	0.0%	n/a	0.0%	0.0%	0.0%	100.0%	$0.000	40	2026-07-20
33	Reka Flash 3	Reka	0.0%	0.0%	0.0%	0.0%	0.0%	n/a	0.0%	0.0%	12.5%	0.0%	$0.040	40	2026-07-20
34	Step 3.7 Flash	StepFun	0.0%	0.0%	0.0%	0.0%	0.0%	n/a	0.0%	0.0%	100.0%	0.0%	$0.234	40	2026-07-20

paper analysis

The binary score separates four distinct outcomes.

Full paper

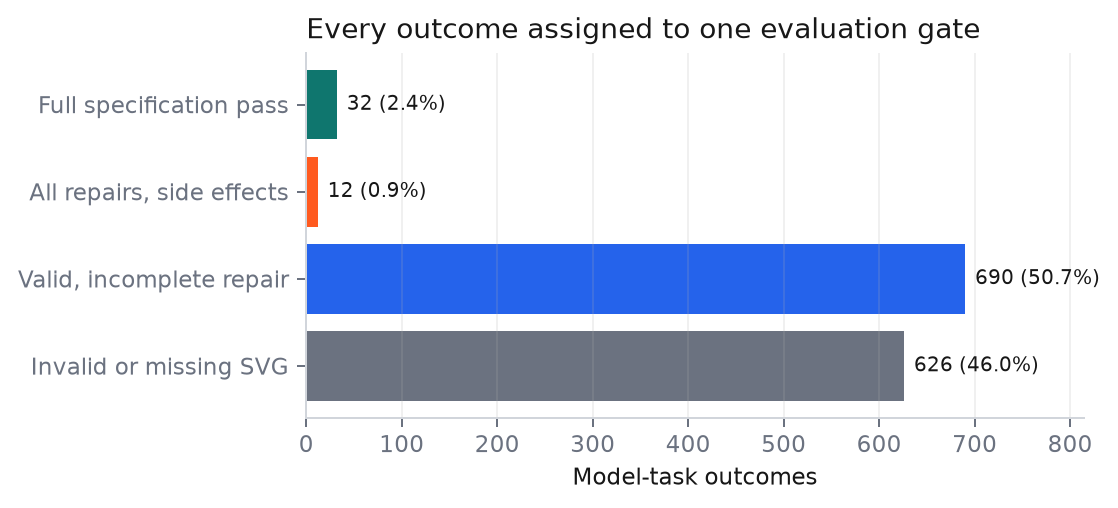

Mutually exclusive decomposition of benchmark outcomes by evaluation gate — Each output is assigned once: full pass, completed repair with side effects, valid incomplete repair, or invalid artifact.

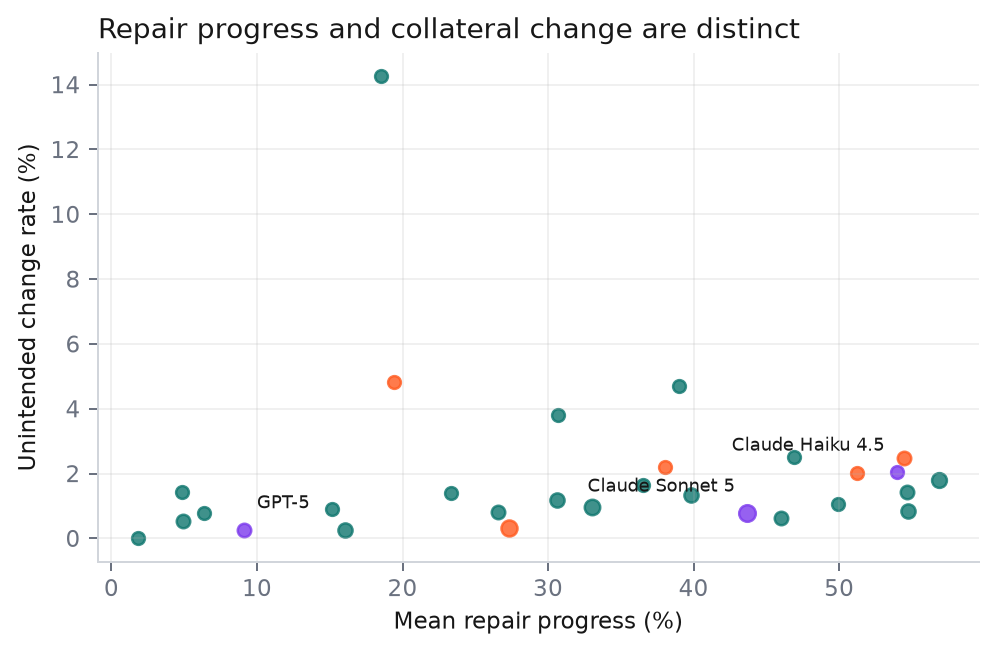

Scatter plot of repair progress against valid-output unintended change rate — Repair progress and collateral change on valid outputs are measured independently.

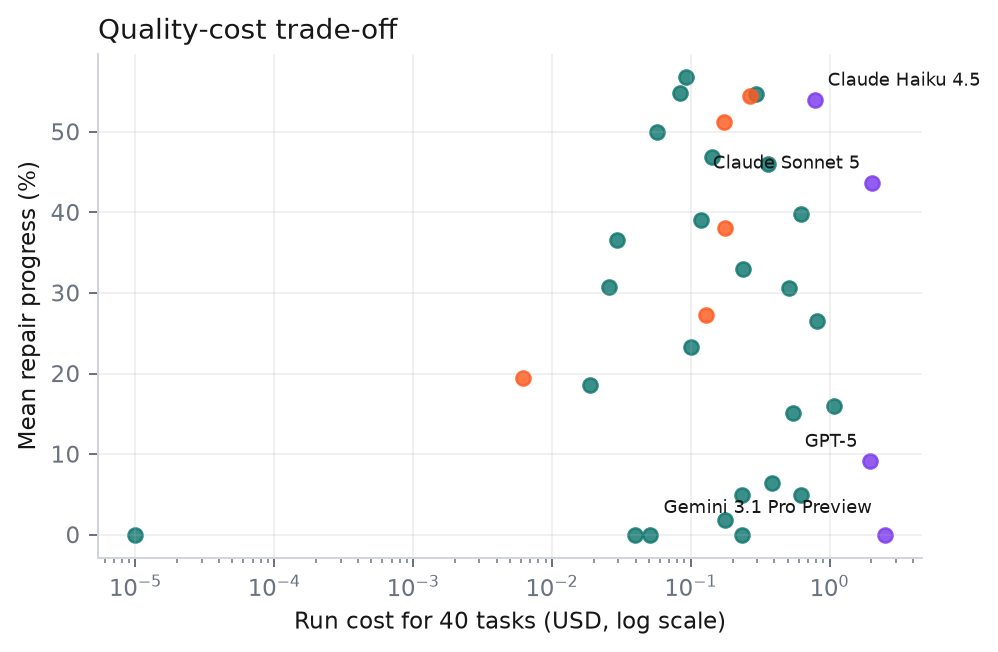

Scatter plot of model repair progress against benchmark run cost — Provider cost does not fully predict repair quality.
